BULDX / Industrial Floor Joints

Screed movement joints and the finish above them

BULDX product guides5 October 20262 min read

Coordinate a screed joint with the floor finish and the joint layout below. A finishing layer should not accidentally bridge a movement line that the design intends to preserve.

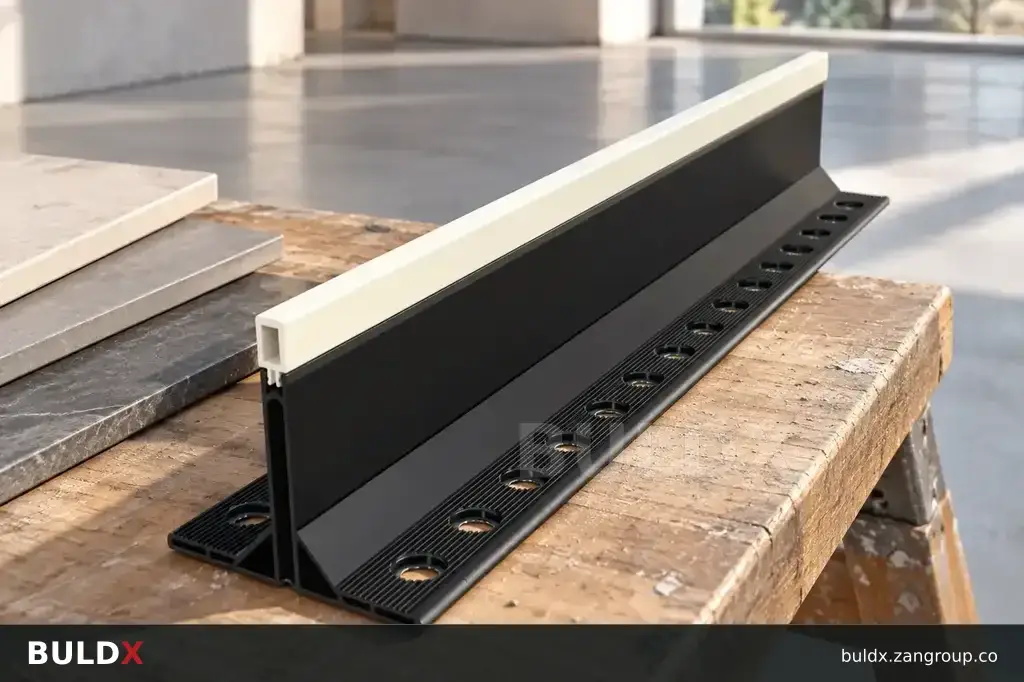

AI-generated application context: Screed movement joints and the finish above them — APPLICATION ILLUSTRATIONAI-generated application illustration for this guide. Not a completed BULDX project or an installation drawing.

Selection considerations

Show screed depth, floor covering and adhesive layers on the same detail. Establish whether the joint is for crack control or movement accommodation. Different functions may require different treatment through the finish.

Check profile height against the actual screed thickness and plan transitions at doors or material changes. Keep the selected joint free of rigid finishing material where movement is required. Label the finish contractor's responsibilities in the method statement so the intended detail survives the handover between trades.

Before you specify or order

Draw screed and finish together
Distinguish movement from crack control
Coordinate the trade handover

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

CATALOGUE REFERENCEBDX-MJ-DP70 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.

Product and code	Selected catalogue fields
`BDX-MJ-DP70`70 mm Screed Movement Joint ProfileScreed Movement Joints	Height 70 mm Length 3000 mm Base width 78 mm Application Marble / granite / ceramic screed
`BDX-SJ-SCR-70`70 mm Screed Crack-Control JointScreed Crack-Control Joints	Height 70 mm Length 3000 mm Top width 5 mm Application Surface-hardened screed / factory / parking
`BDX-SJ-SCR-80`80 mm Screed Crack-Control JointScreed Crack-Control Joints	Height 80 mm Length 3000 mm Application Surface-hardened screed / factory / parking Top width Not specified for the 80 mm variant

Browse the complete Industrial Floor Joints catalogue

Common question

Can a screed joint be hidden under continuous tile?

Do not assume so. Follow the approved movement and finish detail for that location.

References and scope

BULDX catalogue: Industrial Floor Joints

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
