Matching industrial joint height to slab and screed depth

BULDX product guides2 min read

Compare joint height against the layer in which the profile is installed. Overall floor thickness and the thickness of a separate screed are not necessarily the same dimension.

AI-generated application context: Matching industrial joint height to slab and screed depth
APPLICATION ILLUSTRATIONAI-generated application illustration for this guide. Not a completed BULDX project or an installation drawing.

Selection considerations

Mark the base level, slab level and finished surface on a section. Identify whether the profile belongs in the structural slab, screed or repair zone. A profile that is too tall can interfere with finishing; a shallow one may not suit the intended detail.

Check how installation supports establish the top edge and whether adjustment is available. Account for local level changes without improvising cuts that alter the approved section. Record the selected height in the product code schedule so a similar family member is not substituted during delivery.

Before you specify or order

  • Identify the installation layer
  • Coordinate the top edge level
  • Record height for each floor zone

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

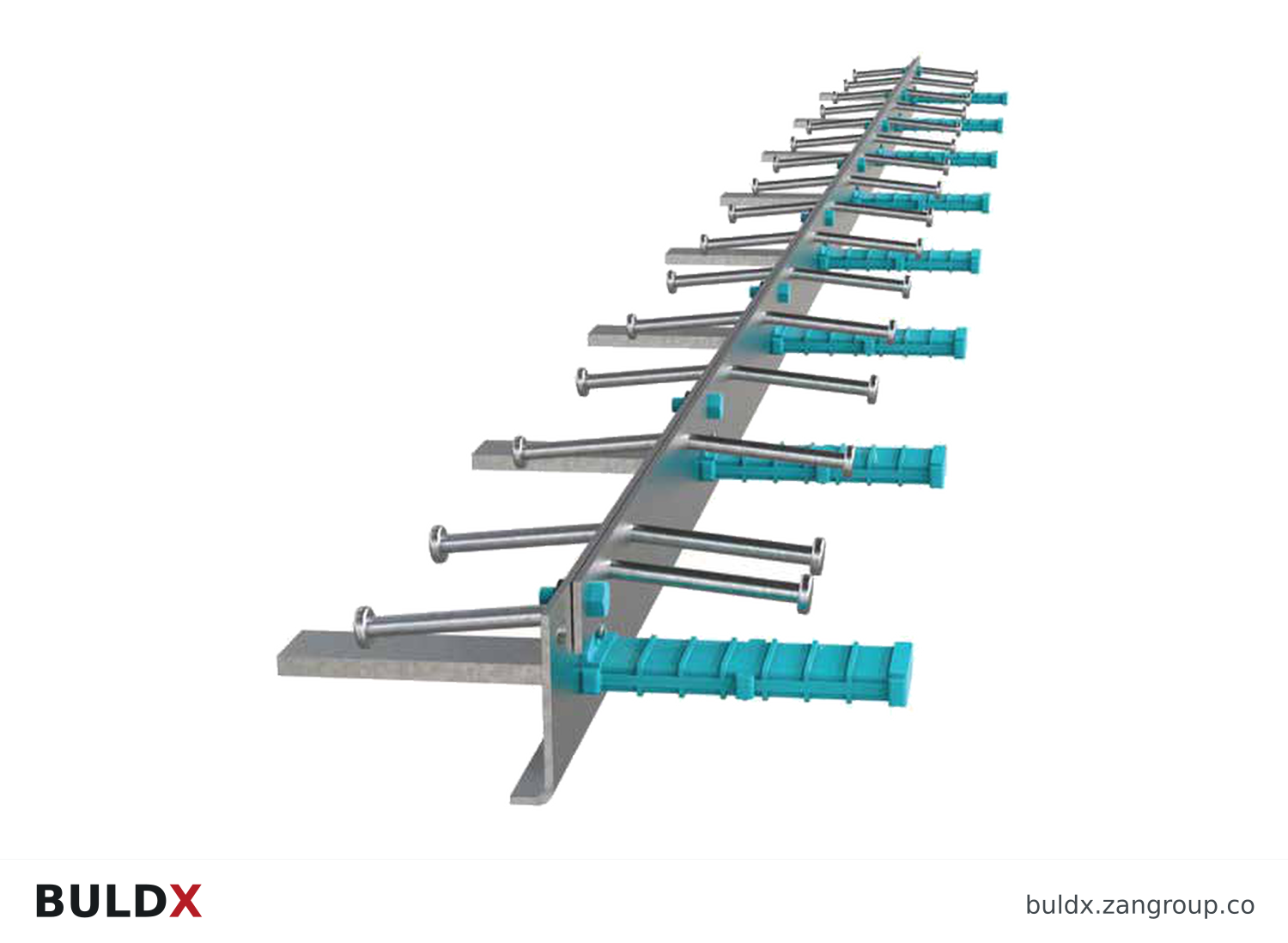

BULDX catalogue illustration of 90 mm Low-Height Slab Joint, code BDX-SJ-090
CATALOGUE REFERENCEBDX-SJ-090 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.
Product and codeSelected catalogue fields
BDX-SJ-09090 mm Low-Height Slab JointLow-Height Crack-Control Joints
Height
90 mm
BDX-SJ-SCR-7070 mm Screed Crack-Control JointScreed Crack-Control Joints
Height
70 mm
Length
3000 mm
Top width
5 mm
Application
Surface-hardened screed / factory / parking
BDX-SJ-SCR-8080 mm Screed Crack-Control JointScreed Crack-Control Joints
Height
80 mm
Length
3000 mm
Application
Surface-hardened screed / factory / parking
Top width
Not specified for the 80 mm variant
Browse the complete Industrial Floor Joints catalogue

Common question

Can the same height be used across a sloping floor?

Only where the approved detail and setting-out accommodate the changing build-up.

References and scope

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
