Assigning Responsibility at Expansion Joint Interfaces
A joint interface works best when each trade knows what it must provide and what it must inspect. Unassigned edge preparation, waterproofing or accessory work can leave gaps even where the profile order itself is complete.
Selection considerations
Use the coordinated section to list responsibilities for the concrete edges, screed levels, finishes, profile assembly and any separate barrier. Name the party preparing each substrate and the party accepting it before the next stage begins. Avoid a general note that leaves every interface to be resolved on site.
Agree the release points in the installation sequence. For example, the finish trade may need an accepted joint datum before setting adjacent stone, while the joint installer may need sound edges before fixing. Record these dependencies in the programme rather than assuming all trades can work independently.
Close the review with one responsibility matrix and the agreed drawing revision. When a variation changes the assembly, revise the matrix as well as the quantity. At handover, identify who maintains each component so the operator knows which documents and spare parts belong together.
Before you specify or order
- Assign preparation and acceptance roles
- Define release points
- Coordinate the sequence with finishes
- Update responsibilities when details change
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

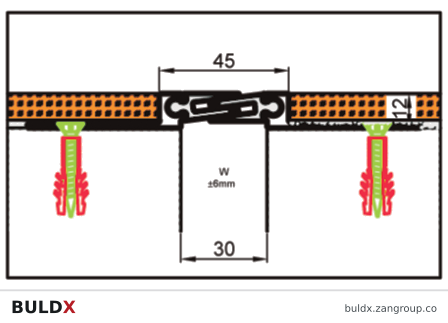

BDX-AF-MF-AL-AL-45-12 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
BDX-AF-MF-AL-AL-45-12Finishing Movement Profiles · 45 × 12 mm · Natural aluminiumFinishing Movement Profiles |
|
BDX-GD750GD750 PVC Movement ProfileFinishing Movement Profiles |
|
BDX-GD751GD751 PVC Movement ProfileFinishing Movement Profiles |
|
Common question
Does a supply-only quotation define installation responsibility?
No. Clarify substrate preparation, installation, inspection and interface responsibilities in the project package.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
