Recessed versus surface-mounted floor expansion joints

BULDX product guides5 October 20262 min read

Choose between recessed and surface-mounted floor joints by the available floor depth, edge condition and construction sequence. The two installation approaches should not be treated as interchangeable finishes.

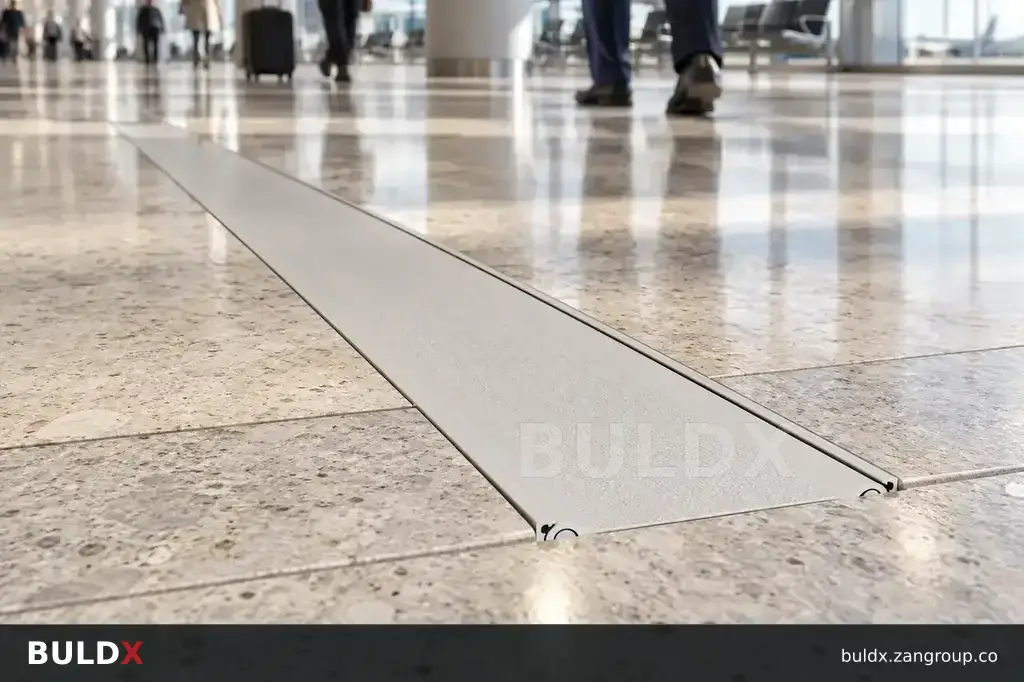

AI-generated application context: Recessed versus surface-mounted floor expansion joints — APPLICATION ILLUSTRATIONAI-generated application illustration for this guide. Not a completed BULDX project or an installation drawing.

Selection considerations

A recessed system needs space within the floor build-up and a coordinated edge detail. Establish the final floor level before installing supports. A surface system is often considered for existing finishes, but its edge transition and attachment still need careful review.

For renovation, survey the actual opening and substrate condition along the route. Confirm whether the floor can be cut back without affecting services or waterproofing. Compare finished transitions, maintenance access and the selected system's movement range. Price the necessary substrate preparation with the profile so the installation method is reflected in the complete cost.

Before you specify or order

Measure available installation depth
Set finished floor level
Include edge preparation in the scope

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

BULDX catalogue illustration of 100 mm Under-Floor Expansion Joint - Type 1, code BDX-EJ-UF-1-100 — CATALOGUE REFERENCE`BDX-EJ-UF-1-100` · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.

Product and code	Selected catalogue fields
`BDX-EJ-UF-1-100`100 mm Under-Floor Expansion Joint - Type 1Under-Floor Joints	Nominal joint width 100 mm Movement capability ±14 mm Profile height 17 / 30 / 50 / 65 mm Standard length 3 m Material Aluminium / EPDM
`BDX-EJ-TF-1-100`100 mm Top-Floor Expansion Joint - Type 1Top-Floor Joints	Nominal joint width 100 mm Movement capability ±14 mm Profile height 17 mm Standard length 3 m Material Aluminium / EPDM
`BDX-EJ-UF-2-100`100 mm Under-Floor Expansion Joint - Type 2Under-Floor Joints	Nominal joint width 100 mm Movement capability ±18 mm Profile height 15 / 41 mm Standard length 3 m Material Aluminium / EPDM

Browse the complete Structural Movement catalogue

Common question

Is surface mounting always simpler?

Not necessarily. Edge transitions, anchorage and the existing substrate may still require substantial preparation.

References and scope

BULDX catalogue: Structural Movement

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
