A joint survey needs more than one opening measurement. Record where, when and under what site conditions each reading was taken, so the design team can compare the observed gap with the installation range of the proposed profile.

AI-generated product sample context: A surveyor recording a joint beside a glazed atrium, high overhead oblique view
APPLICATION ILLUSTRATIONAI-generated application illustration. A new visual concept, not a completed BULDX project or an approved installation drawing.

Selection considerations

Mark measurement stations on the structural joint plan. Measure the exposed opening at each station, noting obstructions, damaged arrises and changes in the adjoining finish. A single reading at the easiest access point can hide a tapered opening or a local repair that changes the usable fixing area.

Record ambient conditions and the condition of the building when the survey is made. Do not turn a site temperature into a movement calculation without the engineer's design information. Its purpose in the survey is to make the observation traceable and help explain why later readings may differ.

Issue photographs with a scale, a location reference and the measurement direction. Keep cover width, structural opening and available edge support in separate fields. Ask the supplier to confirm the selected system's permitted installation opening against this survey, rather than treating a nominal product name as confirmation.

Before you specify or order

  • Mark survey stations on a plan
  • Record date and conditions
  • Separate structural opening from cover width
  • Obtain installation-range confirmation

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

BULDX catalogue illustration: 100 mm Top-Floor Expansion Joint - Type 1, code BDX-EJ-TF-1-100

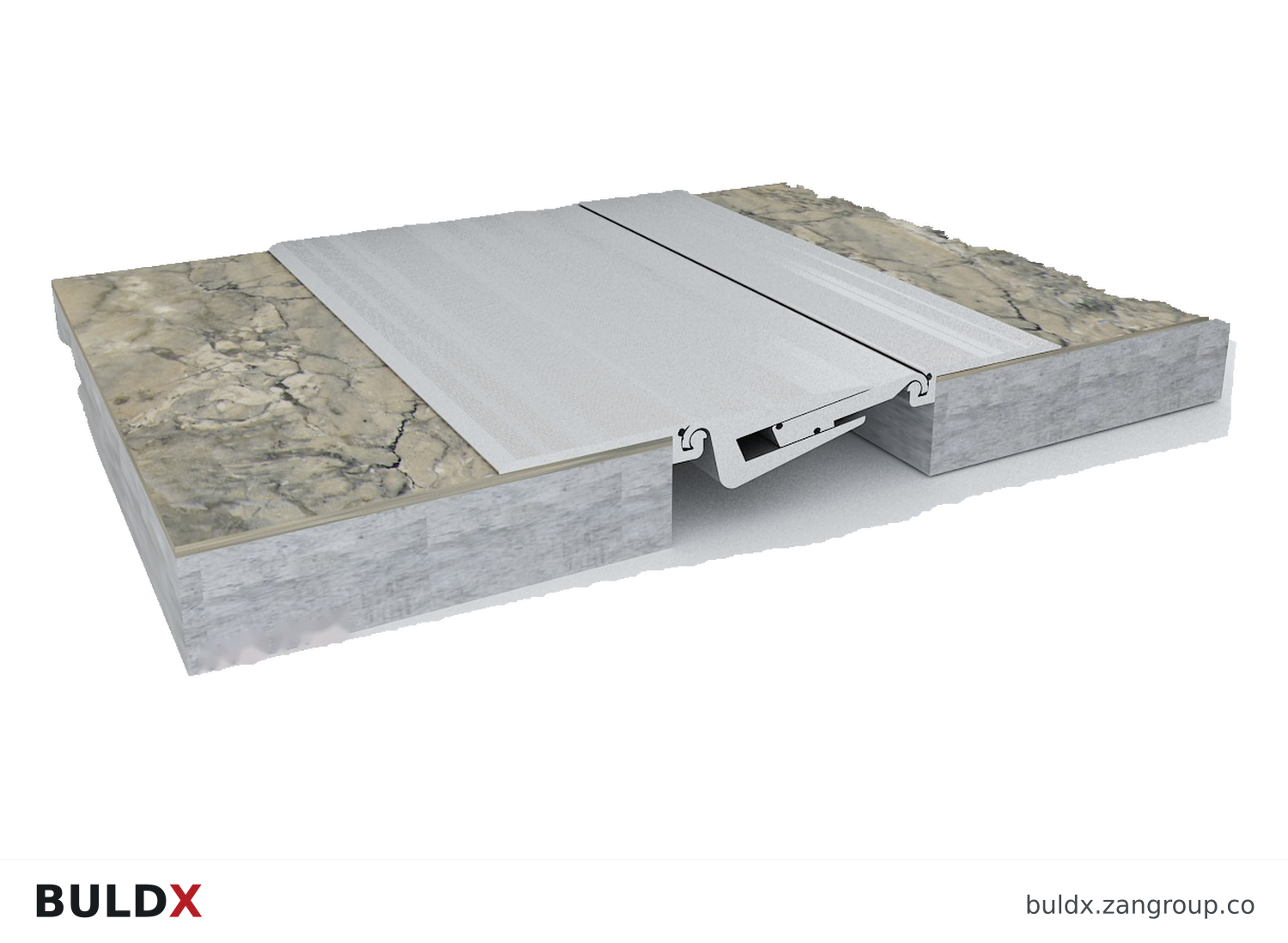

CATALOGUE REFERENCEBDX-EJ-TF-1-100 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.
