Planning Replacement Inserts and Spare Joint Components

BULDX product guides2 min read

Spare joint inserts should be identified by their exact compatible assembly, not by colour or nominal width alone. A similar-looking elastomer strip may use a different seating geometry or have different documented properties.

AI-generated product sample context: Neutral spare elastomer samples in organised drawers, macro angle
APPLICATION ILLUSTRATIONAI-generated application illustration. A new visual concept, not a completed BULDX project or an approved installation drawing.

Selection considerations

Ask the supplier for the replacement component references associated with the selected joint code and revision. Record whether the spare is an insert, cover, retainer, seal or complete assembly. Keep the required finish and any project-specific configuration in the same schedule.

Agree quantities and storage conditions with the operator. Consider the installed locations and the consequences of losing a component, rather than ordering one arbitrary percentage for every item. Retain the original packaging information and the applicable storage instructions.

Include a documented compatibility check before accepting alternatives. If the original component is unavailable later, ask the supplier to compare the replacement against the installed assembly. Keep any approved change in the asset register so the next maintenance order does not revert to an obsolete reference.

Before you specify or order

  • Obtain exact spare component references
  • Record assembly revisions
  • Agree storage and quantities
  • Document approved substitutions

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

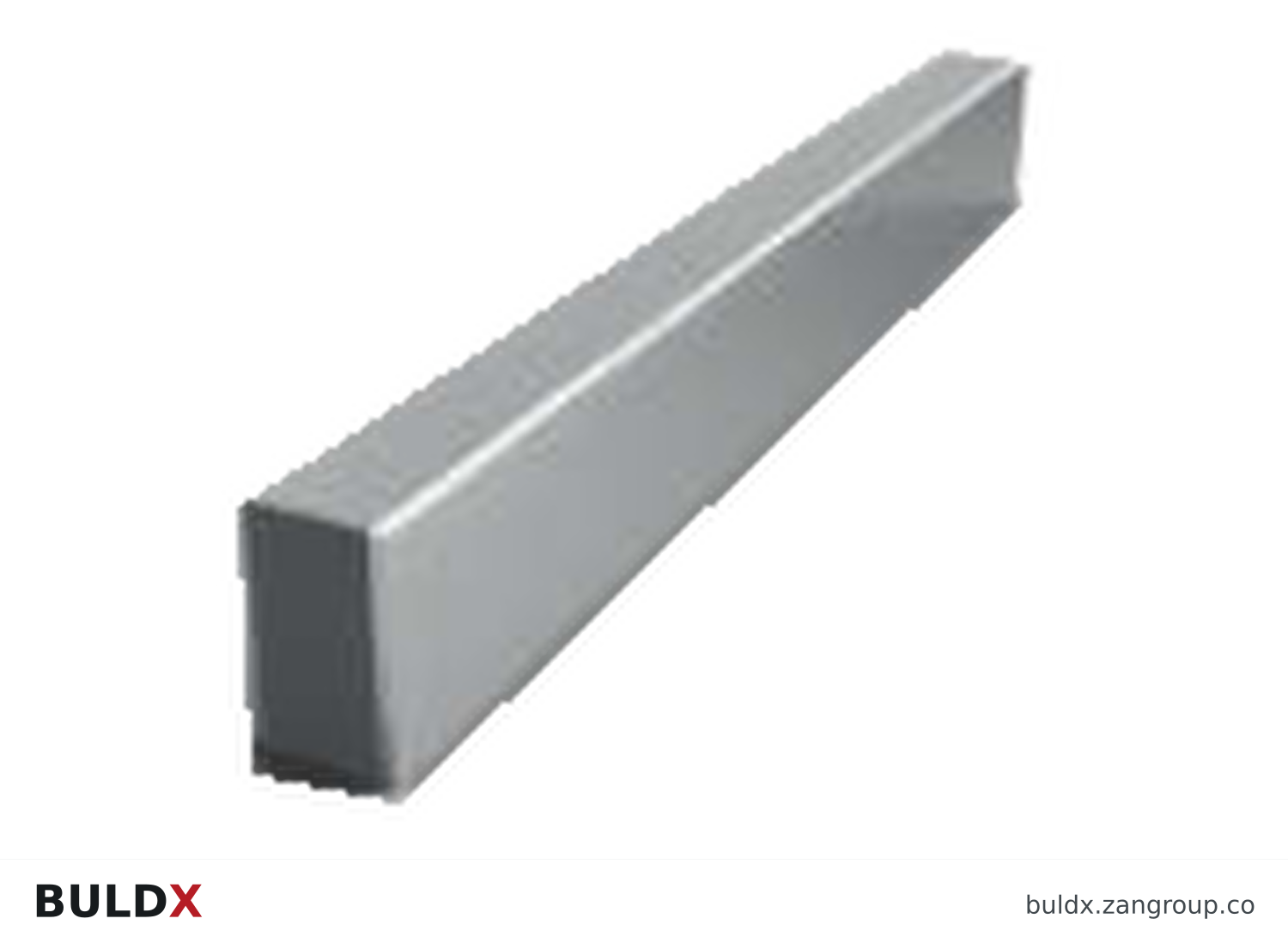

BULDX catalogue illustration: Vulcanized movement control Profile · 10 × 15 mm, code BDX-MC-BCDK-1015
CATALOGUE REFERENCEBDX-MC-BCDK-1015 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.
Product and codeSelected catalogue fields
BDX-MC-BCDK-1015Vulcanized movement control Profile · 10 × 15 mmMovement Control Joints
Material
Aluminium, stainless steel or brass / EPDM
Width
10 mm
Height
15 mm
Length
2.5 m
BDX-MC-BCD-1120Movement control Profile · 11 × 20 mmMovement Control Joints
Material
Stainless steel / EPDM
Width
11 mm
Height
20 mm
Length
2.5 m
BDX-MC-BCD-1250Movement control Profile · 12 × 50 mmMovement Control Joints
Material
Aluminium / EPDM
Width
12 mm
Height
50 mm
Length
3 m
Browse the complete Structural Movement catalogue

Common question

Can a spare insert be ordered from a photograph?

A photograph can help identification, but confirm the installed code, seating geometry and compatible component reference before ordering.

References and scope

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
