Checking End Caps and Junction Accessories Before Fit-Out

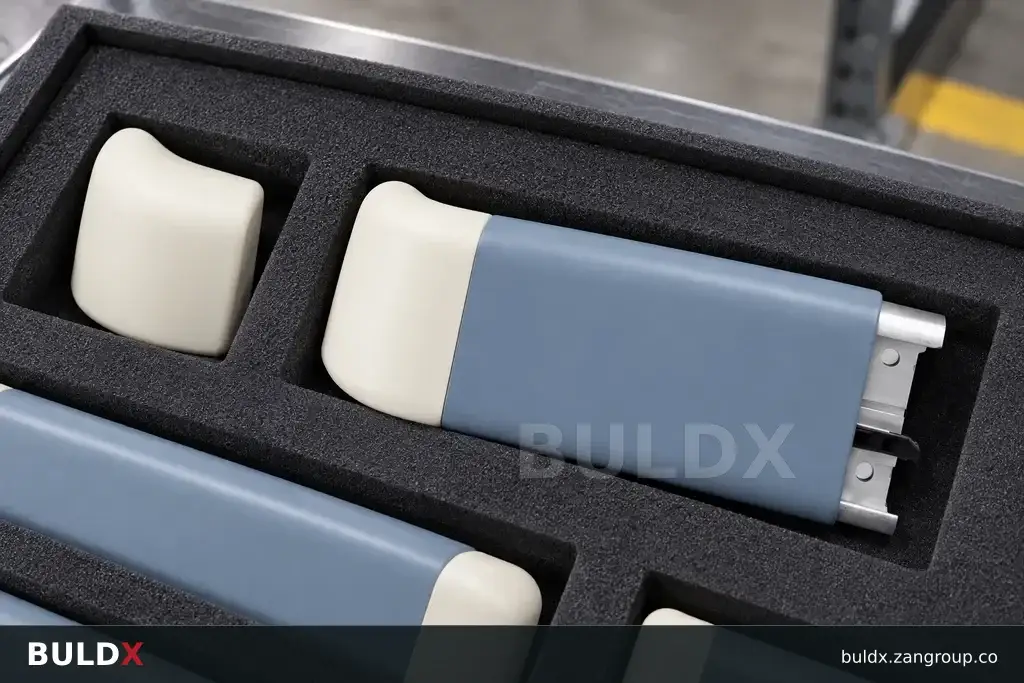

A pre-installation accessory inventory helps avoid incomplete wall protection runs. Caps, corners, brackets and cover pieces should be checked against the selected assembly before the installer starts cutting straight lengths.
Selection considerations
Use the approved elevations to count every termination and direction change. Separate internal and external corners, left and right components where applicable, and any special junctions. Do not convert an accessory list into a simple percentage of the running length.
At delivery, compare package labels and component geometry with the supplier's list. Keep accessories grouped by system code and finish. Two caps that look similar can have different seating arrangements, so a visual match should not override the compatible part reference.
Resolve missing or unidentified items before issuing complete room packages. Record any approved substitution and trial-fit it where required. Retain unused components with their original identification for handover instead of mixing them in a box of unlabelled spare parts.
Before you specify or order
- Count terminations from elevations
- Separate corner functions
- Verify compatible component references
- Keep spares labelled
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

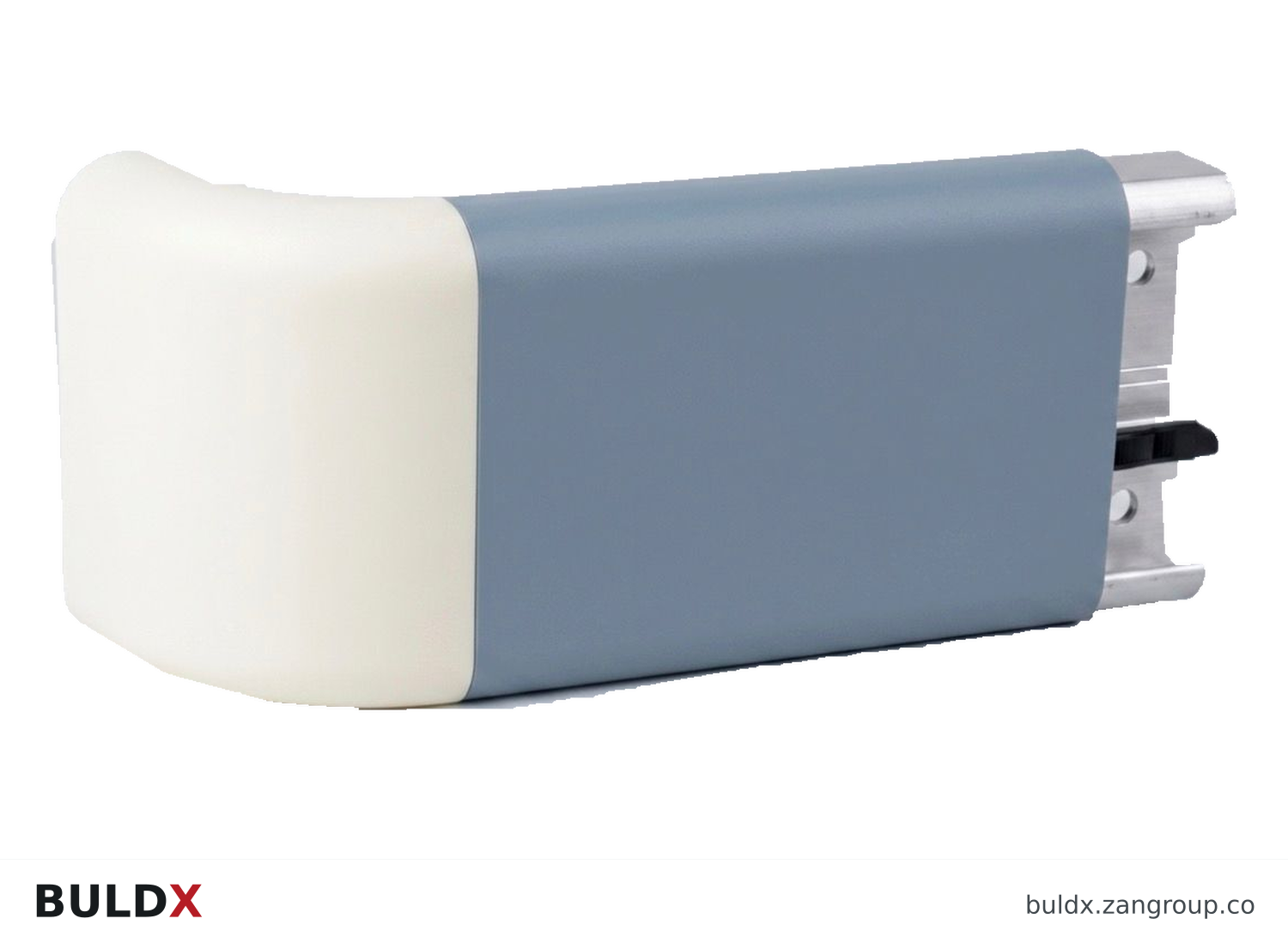

ZHR-1500DK · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
ZHR-1500DKImpact-Absorbing HandrailHandrails |
|
ZHR-50KPCircular Corridor HandrailHandrails |
|
ZHR-142DKCombined Handrail & Wall GuardHandrails |
|
Common question
Why count caps before cutting rails?
The accepted end arrangement can affect the cut length and complete assembly, and missing caps may prevent proper completion of the run.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
