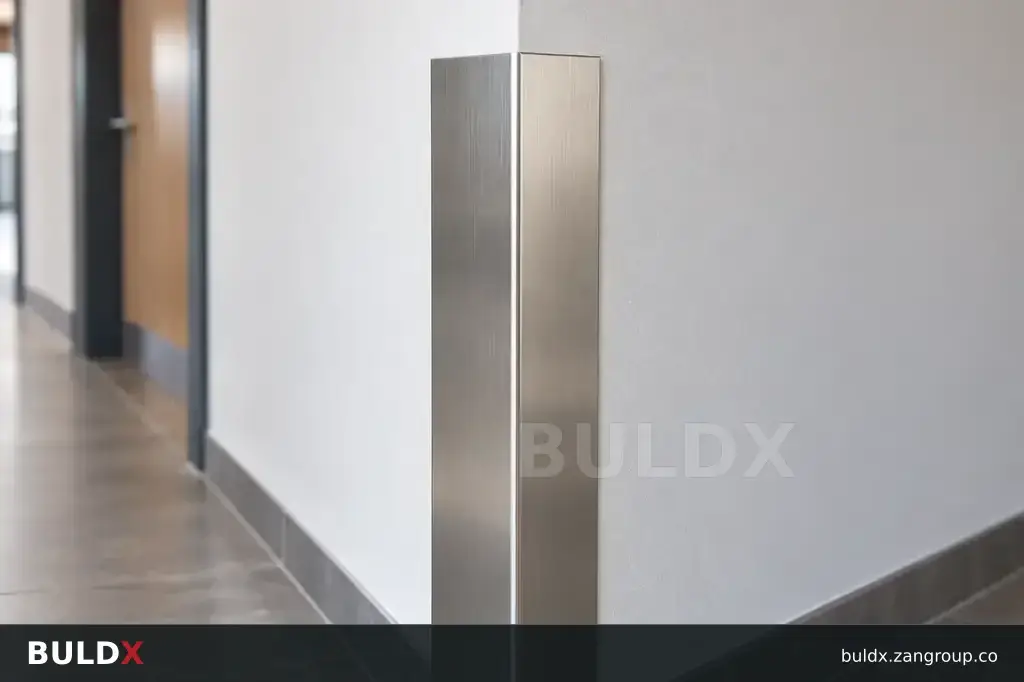

90-degree and 135-degree corner guards: why angle matters
Match a corner guard to the actual wall angle before comparing its material or colour. Equal wing widths do not make a 90-degree guard interchangeable with a 135-degree guard.
Selection considerations
Measure both sides of the finished corner and check whether the substrate is straight. A nominal drawing angle may differ from a site-built corner after plastering. A poor fit can leave adhesive gaps, exposed edges or an uneven cover line.
For mechanically fixed designs, coordinate the backing profile, concealed screws and cover together. Adhesively fixed designs need a compatible, prepared surface and an approved bonding method. Check the protection height at trolley corners and include end caps where the selected system requires them. A sample on the real wall is more informative than comparing isolated product images.
Before you specify or order
- Measure the finished corner angle
- Record both wing dimensions
- Confirm fixing and cap requirements
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

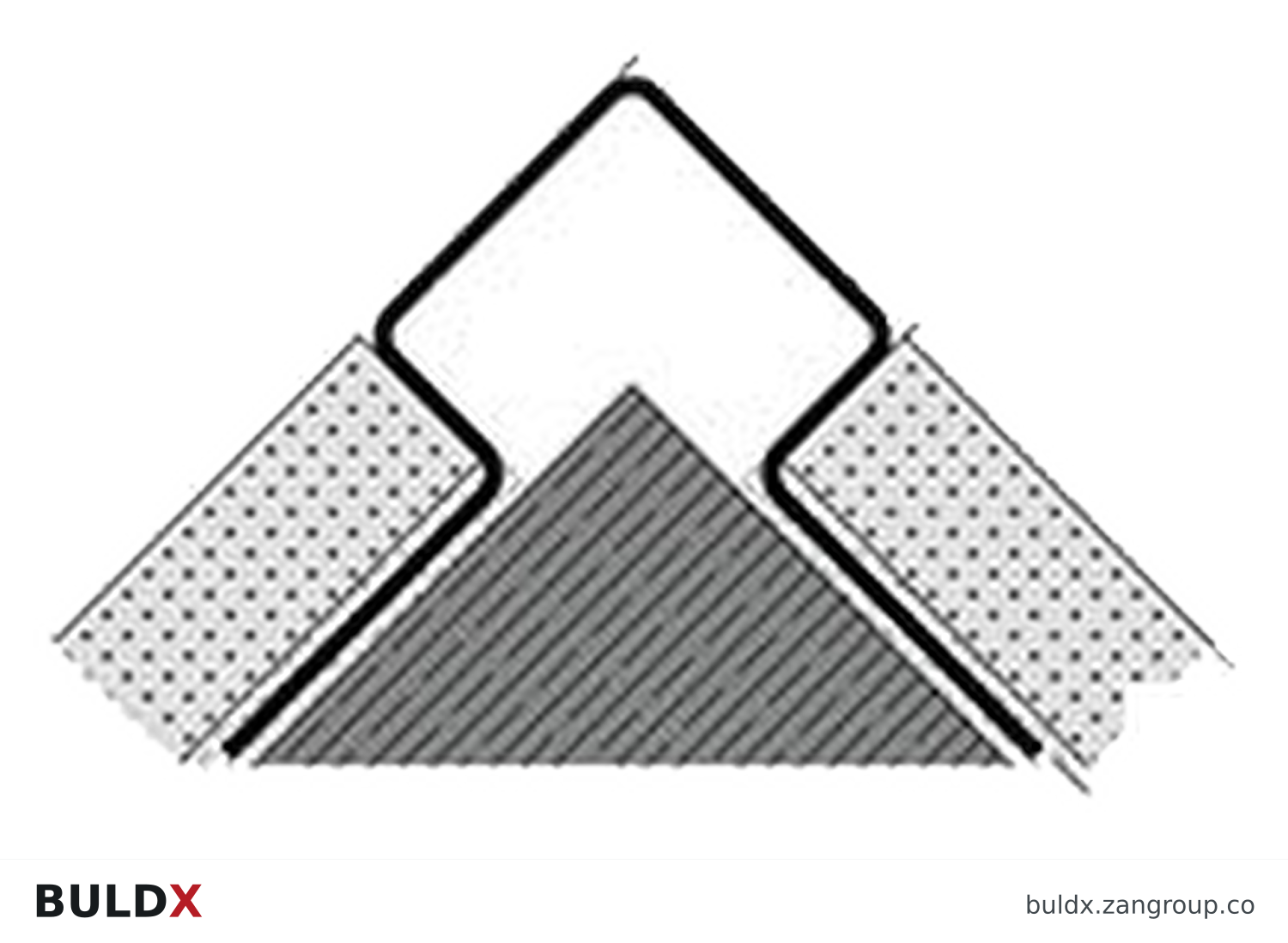

BDX-CG-SS-2210 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.| Product and code | Selected catalogue fields |
|---|---|
BDX-CG-SS-221022 × 10 mm Stainless-Steel Corner GuardCorner Guards |
|
BDX-CG-AL-252525 × 25 mm Aluminium Corner GuardCorner Guards |
|
BDX-CG-AL-272727 × 27 mm Aluminium Corner GuardCorner Guards |
|
Common question
Can a corner guard be bent to fit another angle?
Do not assume this. Use the specified angle or obtain written approval for a project-specific adaptation.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
