Approving Waterproofing Lap Samples Before Site Work

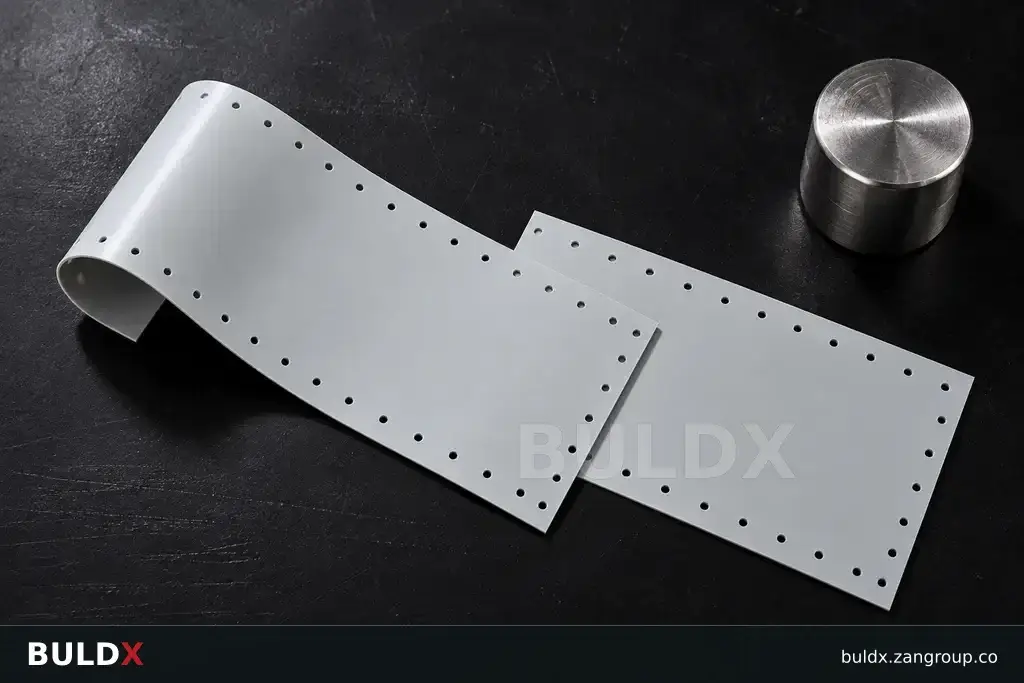

A lap sample makes overlap and bonding requirements visible before repeated site work begins. It should reproduce the proposed system and method, rather than showing an attractive seam made with different materials.
Selection considerations
Obtain the selected manufacturer's lap, preparation and curing requirements. Identify the exact membrane or band, adhesive and substrate used in the sample. Do not invent a universal overlap dimension from another product or from the width of the supplied roll.
Prepare the sample using the proposed equipment and sequence. Record conditions and any application variables required by the instructions. Agree how the result will be inspected; a visual appearance review should not be described as a pressure or water-tightness test unless that test was actually specified and performed.
Retain the accepted sample and procedure with the site work package. If a material or method changes, assess whether the old approval still applies. During installation, compare lap execution with the approved detail and record any deviations before covering the work.
Before you specify or order
- Use system-specific lap requirements
- Identify every sample material
- Record the demonstrated procedure
- Review changed combinations
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

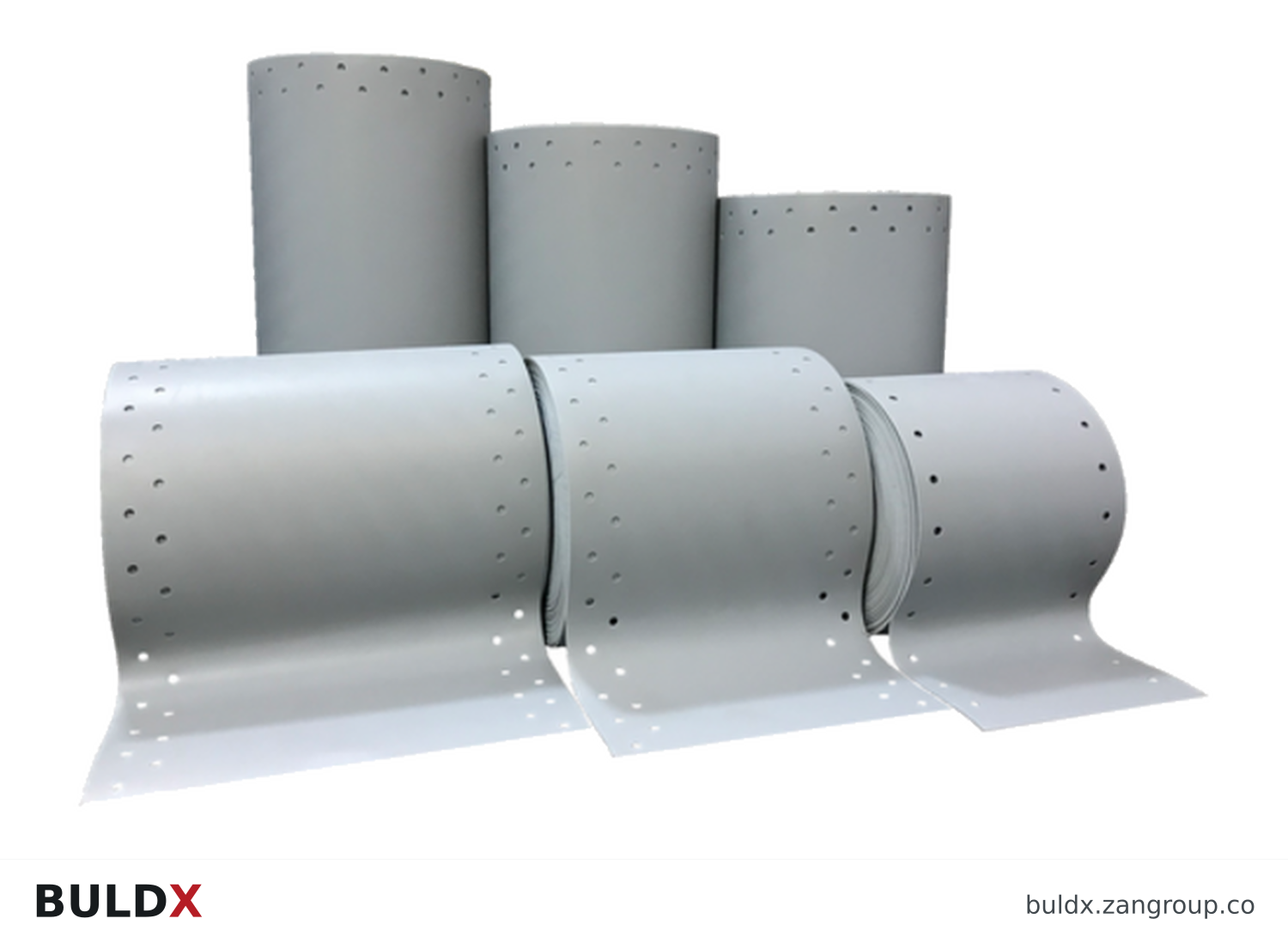

ZAN EXPANSION BAND · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
ZAN EXPANSION BANDThermoplastic Expansion BandBands |
|
Common question
Does roll width define the required overlap?
No. Follow the selected system's documented lap detail and project requirements.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
