Floor transition profiles: equal levels versus height changes

BULDX product guides2 min read

A floor transition should match the actual levels and materials on both sides. A flat joining strip and a height-transition profile perform different jobs.

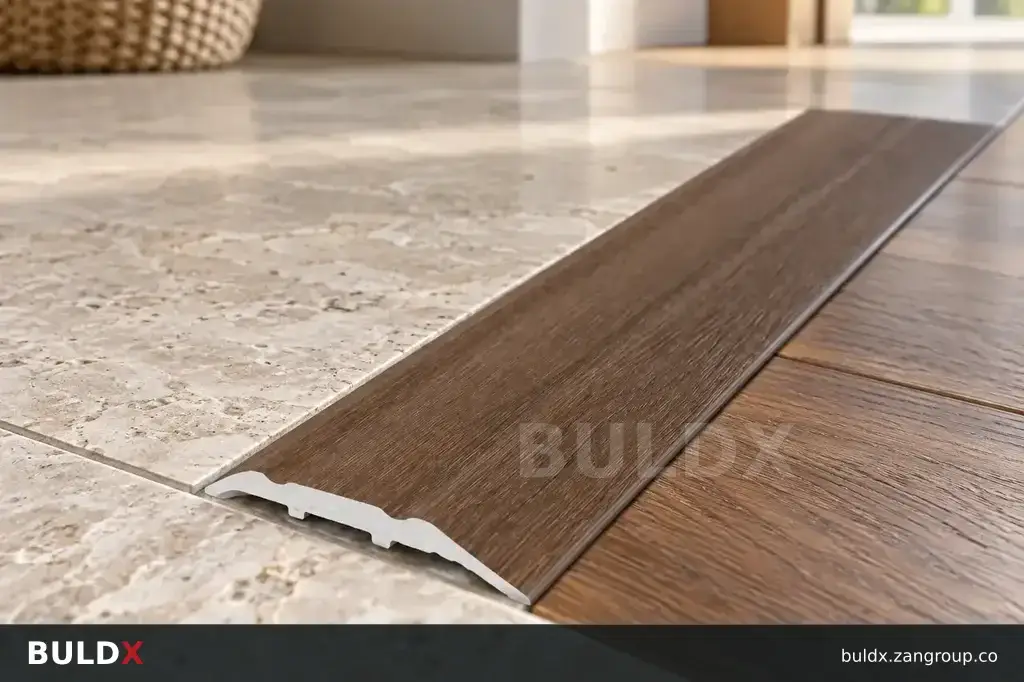

AI-generated application context: Floor transition profiles: equal levels versus height changes
APPLICATION ILLUSTRATIONAI-generated application illustration for this guide. Not a completed BULDX project or an installation drawing.

Selection considerations

Measure the finished levels after accounting for tile, adhesive, timber or other covering layers. Note whether the profile is fixed beneath the covering or fitted afterwards. The construction sequence can rule out a section that otherwise appears suitable.

Check cover width, anchorage and the treatment of exposed edges. Keep a movement requirement separate from the decorative transition: a rigid trim should not be assumed to serve as an expansion joint. Where the route needs accessibility review, coordinate the final geometry with the approved project detail.

Before you specify or order

  • Measure both finished levels
  • Confirm installation sequence
  • Distinguish transition from movement accommodation

Relevant BULDX catalogue examples

These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

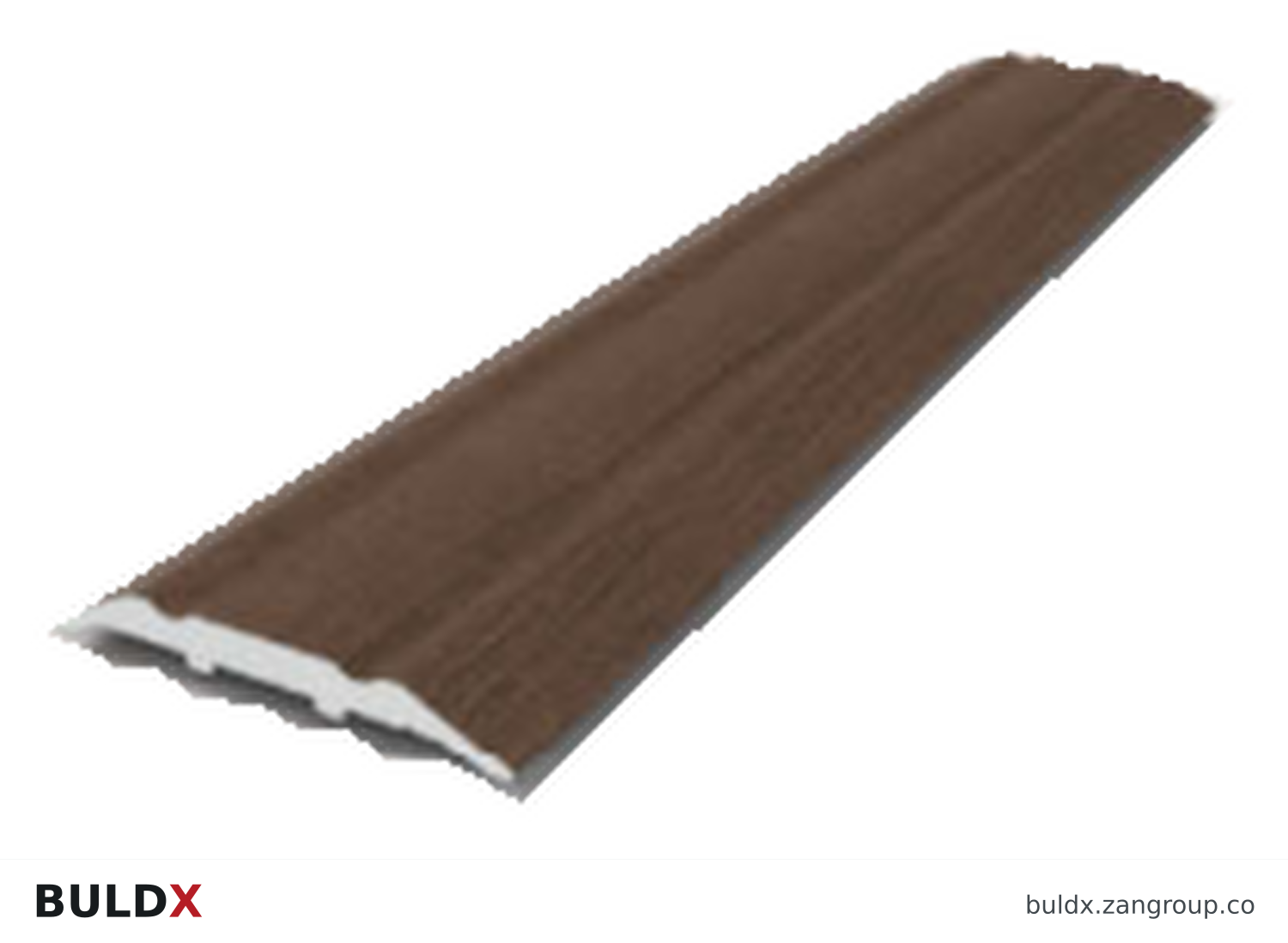

BULDX catalogue illustration of Adhesive Transition Profile · 25 × 3 mm, code BDX-TR-BEC-2503
CATALOGUE REFERENCEBDX-TR-BEC-2503 · Product geometry from the catalogue; a family illustration may be shared by variants. Consult the selected technical documents for dimensions and the approved fixing detail.
Product and codeSelected catalogue fields
BDX-TR-BEC-2503Adhesive Transition Profile · 25 × 3 mmTransition Profiles
Material
Aluminium
Width
25 mm
Height
3 mm
Installation
Adhesive
Length
2.7 m
BDX-TR-BEC-3004Adhesive Transition Profile · 30 × 4 mmTransition Profiles
Material
Aluminium
Width
30 mm
Height
4 mm
Installation
Adhesive
Length
2.7 m
BDX-TR-BEP-3004Adhesive Transition Profile · 30 × 4 mmTransition Profiles
Material
Aluminium
Width
30 mm
Height
4 mm
Installation
Adhesive
Length
2.7 m
Browse the complete Architectural Finishing catalogue

Common question

Can one transition profile fit any floor thickness?

No. The section and fixing arrangement must suit the actual build-up.

References and scope

Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
