Preparing Templates for Curved Entrance Mat Areas
A curved or irregular mat area should be defined by an approved template or coordinated dimensioned drawing. A width and depth alone can miss the geometry that determines whether a custom assembly fits the finished entrance.
Selection considerations
Survey the completed boundary and mark fixed reference points. Identify curves, angled sides, columns and frame interfaces. Clarify which party supplies the template and whether measurements are taken before or after the surrounding floor finish is completed.
Review the proposed frame and panel arrangement against the template. Ask the supplier to confirm what shapes and section divisions the chosen system permits. Do not assume that a catalogue description of custom sizes covers every radius, angle or material configuration.
Approve the manufacturing outline before production and keep a signed revision. During delivery inspection, compare the supplied assembly with that reference without forcing it into an unsuitable recess. Record any site change so the supplier can reassess the outline instead of making uncontrolled cuts to a finished mat.
Before you specify or order
- Survey the finished boundary
- Mark template reference points
- Confirm permitted geometry
- Approve the manufacturing outline
Relevant BULDX catalogue examples
These records illustrate the product types discussed. Compare the full specifications before selecting; listing here does not establish project suitability or make the items interchangeable.

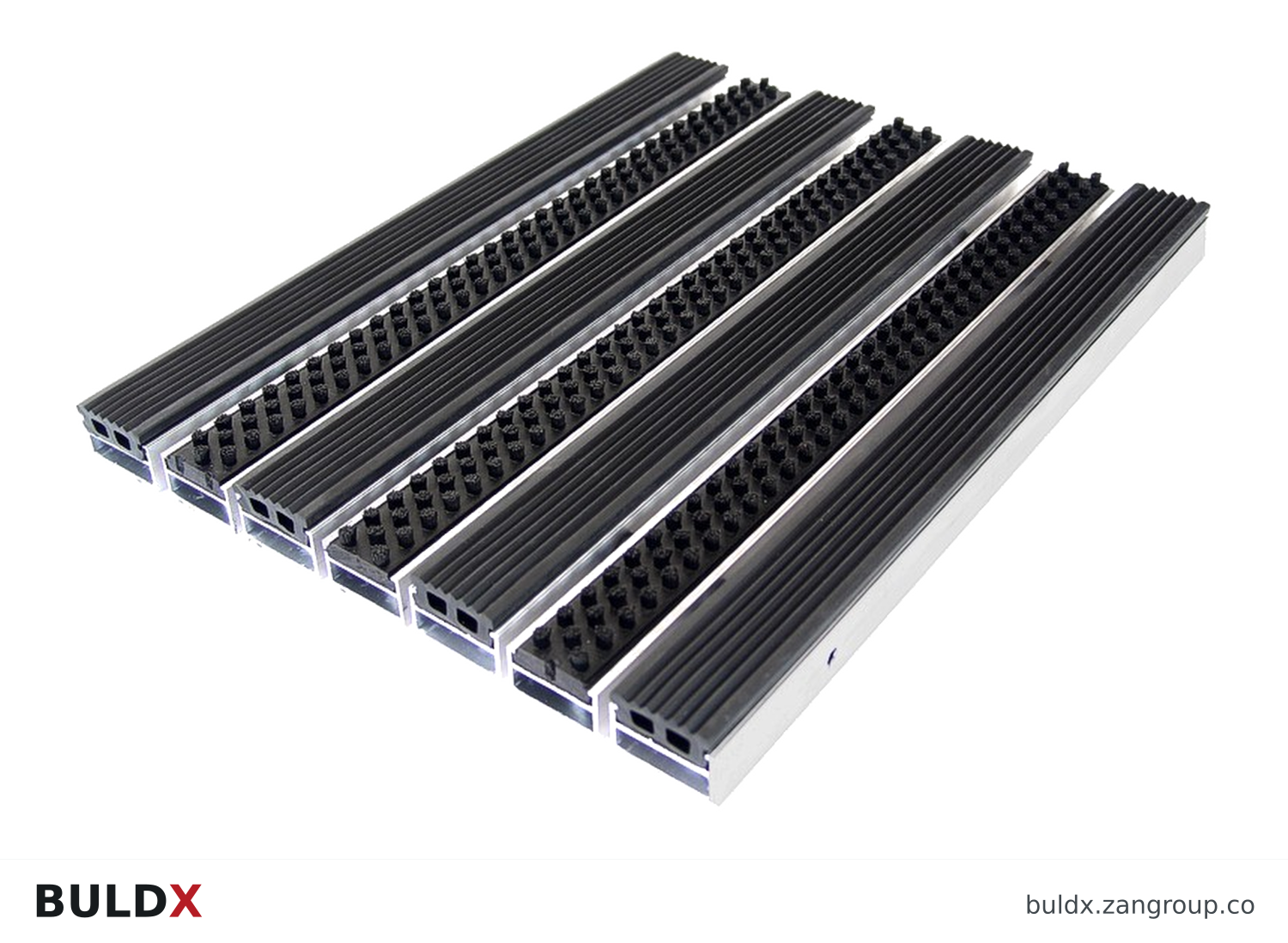

BDX-EM-PF26 · Catalogue geometry reference; a family illustration may be shared by variants. Consult the exact selected drawing for variant dimensions and assembly requirements.| Product and code | Selected catalogue fields |
|---|---|
BDX-EM-PF26PVC & Insert-Brush Entrance MatOutdoor Entrance Mats |
|
BDX-EM-T25Full Aluminium Scraper Entrance MatOutdoor Entrance Mats |
|
BDX-EM-PF28Full Insert-Brush Entrance MatOutdoor Entrance Mats |
|
Common question
Can a photograph define a curved mat shape for manufacture?
It can explain the location, but use an agreed template or dimensioned drawing for the manufacturing geometry.
References and scope
Product fields are from the BULDX catalogue. Confirm the current selected drawing, supporting performance documents and approved project detail before ordering. External references, where listed, provide background guidance and do not certify these products.
